Cam components

Instructions

Our cam component series products cover the top (bottom) slide plate, inclined contract active plate, convex V plate, forced reset block and so on. The products are complete, in line with the popular standard DIN standard and NAAMS standard. At the same time, we can carry on the standard reform according to the customer request, our company has the high precision of the products of the oblique contract, especially the V plate, the inclined contract active board has the interchangeability, the inclined board has the consistency of the height of the inclined plane. It can be used side by side with multiple sloping plates.

Advantage

V guide

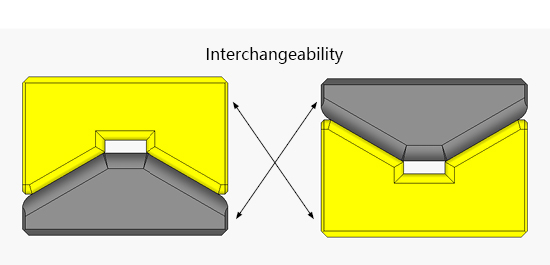

1,The pin-hole symmetry, perpendicularity, parallelism and k value of this product can be controlled to the highest accuracy in the present market, thus ensuring the interchangeability of the product.
Specific technical requirements, please download the technical sample
Tolerances of pin holes and flanks of products, and excess difference between the center line of two pin holes and the center line of the product

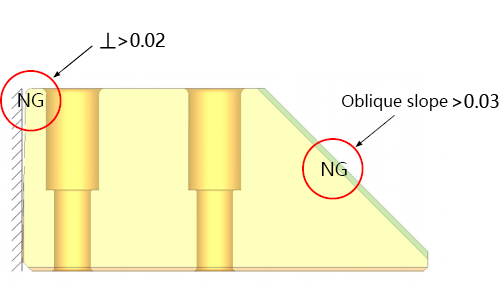

主动板

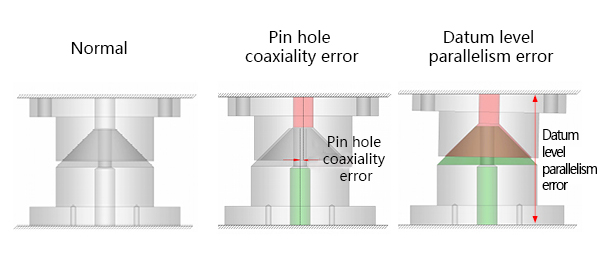

Locating cone

Application area

Catolog

Cam components

凸凹V板

凸凹V板

凸凹V板

凸凹V板

精定位

强制拉回块

强制拉回块

主动板

主动板

外导板

L型板

压板

强制拉回块

斜契用零件

导板
